Model No.: Eurocrane-00132
Packaging: wooden box packing/plywood packaging
Productivity: 3000 sets per year
Brand: Eurocrane
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 3000 sets per year
Certificate: ISO9001/ISO14001
HS Code: 84251900
Port: Shanghai,Tianjin

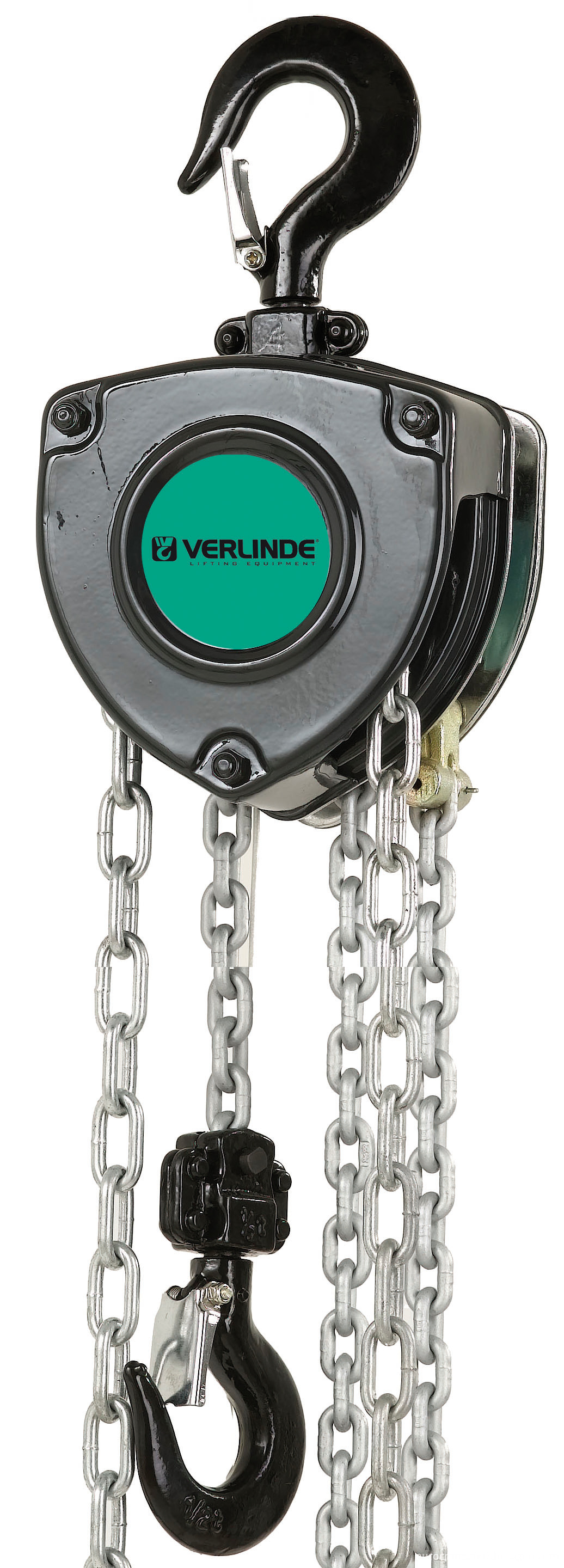

Features
1. Hook blocks are bolted, allowing complete hook inspection.
2. Lightweight, durable all steel construction with powder coating and metal-plated frame component to resist corrosion
3. Premium grade 80 zinc-plated alloy load chain manufactured in Germany, Austria or Japan
4. Hand chain opening is formed with a radius for smooth operation
5. Sealed ball bearings on the chain wheel maximize efficiency and serviceability.
6. Self-adjusting double pawl disc type mechanical load brake ensures positive load control.
7. Double roller guide assures load chain tracking.
8. Optional overload protection comes with the one-way clutch that only slips in one direction during a normal lifting motion.
9. The chain hoist meets: ASME/ANSI B3O.16.OSHA, NASA-STD-8719.9 and EU Directives: 98/37/EC, ATEX rated II 3 GD c IIB 50º C X for limited use in hazardous environments.
| Type | Capacity |
Height of lift (m) |
Load | Force Applied to Start Up the Chain (kg) |
Weight (kg) |
|
|
Number of falls |
Ǿ × pitch |
|||||
| VHR1 | 750 | 3 | 1 | 4×12 | 23 | 6.2 |
| VHR2 | 1500 | 3 | 1 | 5×15 | 24 | 11 |
| VHR3 | 3000 | 3 | 1 | 6×18 | 25 | 12.5 |
| VHR4 | 4500 | 3 | 1 | 7.1×21 | 26 | 17.8 |
| VHR5 | 6000 | 3 | 1 | 8×24 | 33 | 19.5 |
| VHR6 | 9000 | 3 | 1 | 10×28 | 37 | 35 |
| VHR7 | 15000 | 3 | 1 | 9×27 | 36 | 41.5 |
| VHR8 | 22500 | 3 | 1 | 9×27 | 38 | 78.5 |
| VHR9 | 30000 | 3 | 1 | 9×27 | 38 | 78.5 |
Above product is powered by VERLINDE
